| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 0.02 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 0.5 mm |

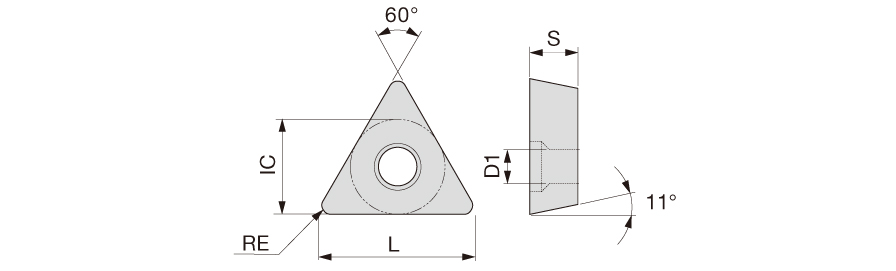

| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 9.6 mm | Max. Turning Feed (ft(max)) | 0.15 mm/rev |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 11 Degrees |
| Inscribed Circle Diameter (IC) | 5.56 mm | Cutting Direction (HAND) | Neutral |
| Cutting Edge Material | Cermet | Chip Breaker Type | Posi Type-01 |
| Coating | TiCNO | Measurement Type | Metric |
| Grade | GT9530 | Body Material | Carbide |
| Fixing Hole Diameter (D1) | 2.5 mm | Cutting Edge Effective Length (LE) | 8.24 mm |
| Tool Type | Turn Positive Inserts | Unit | M |
Product Features

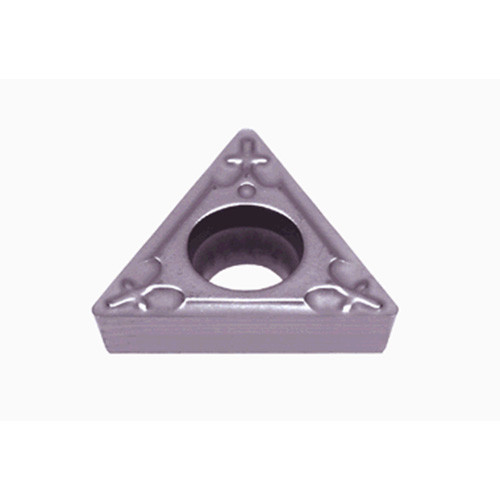

| Family Description | Positive 11deg relief ang., G class, triangular insert, for precision finishing | FamilyName | TPGT-01 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0160
Name
Turning Indexable Inserts
FamilyName
TPGT-01
BrandName
Tungaloy
