| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Min D.O.C. | 1.5 mm |
| Application | | Inserts | | Depth of Cut Maximum (APMX) | 11 mm |
| Corner Radius (RE) | 1.6 mm | Min. Turning Feed (ft(min)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 19.3 mm | Max. Turning Feed (ft(max)) | 1 mm/rev |
| Insert Thickness (S) | 6.35 mm | Cutting Direction (HAND) | Neutral |
| Inscribed Circle Diameter (IC) | 19.05 mm | Chip Breaker Type | THS |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | Ti-compound+Al2O3+TiN | Body Material | Carbide |
| Grade | T9225 | Cutting Edge Effective Length (LE) | 16.09 mm |
| Fixing Hole Diameter (D1) | 7.93 mm | Unit | M |
| Tool Type | Turn Negative Inserts |
Product Features

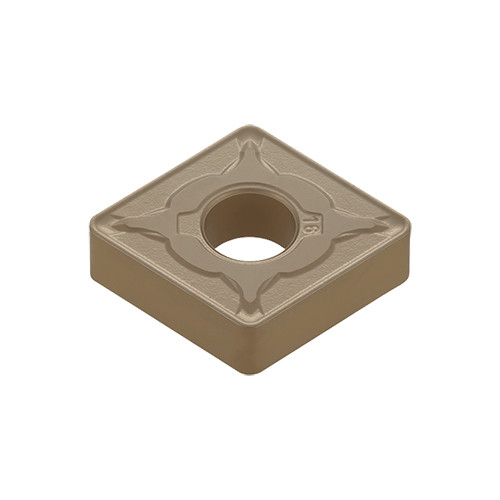

| Family Description | Negative relief ang., M class, 80deg rhombic insert, for medium to heavy cutting | FamilyName | CNMG-THS |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
Turning Indexable Inserts
FamilyName
CNMG-THS
BrandName
Tungaloy
