KUSTS07E-XX.XX

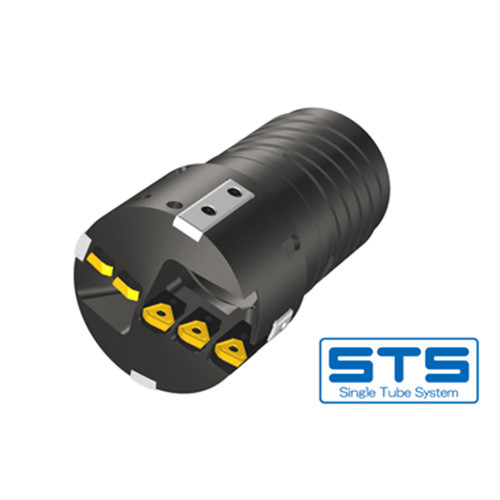

Single Tube Drills with Outer 4 Start Thread connection and Cartridges, dia=38 - 291.99mm. Diameter adjustable. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.
Price: Log in For Price

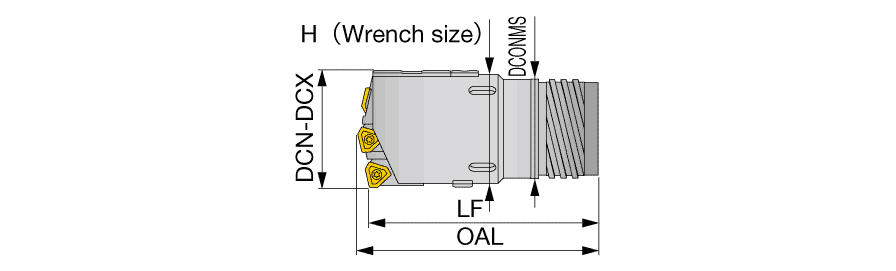

| Application | | BTA system | | Cutting Diameter Maximum (DCX) | 39.6 mm |
| Connection Diameter Machine Side (DCONMS) | 30 mm | Measurement Type | Metric |
| Functional Length (LF) | 85 mm | Body Material | Steel |
| Overall Length (OAL) | 90 mm | Unit | M |
| Cutting Diameter Minimum (DCN) | 38 mm |
Product Features
| Family Description | Single Tube Drills with Outer 4 Start Thread connection and Cartridges, dia=38 - 291.99mm. Diameter adjustable. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | JAPAN |
| Remarks | These products are made to order on request. For inserts and spare parts, click on "More Info". |
Shipping Info
Weight per item
0.0000
