MTECS06039C120.8MJ AH725

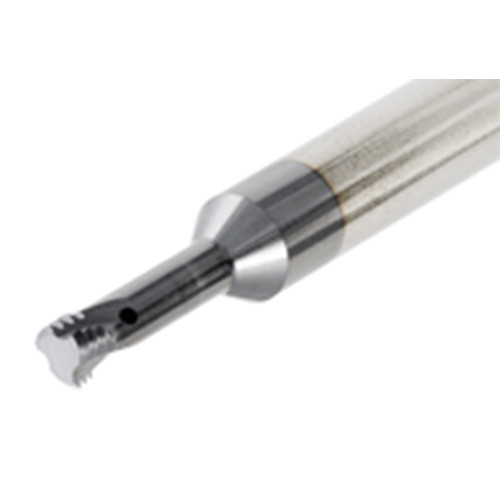

Small diameter short solid carbide MJ-type profile threading endmills with coolant holes directed to the cutting edges. Used for internal J-type thread length of up to 2.5xD in the aerospace industry and for other applications.
Price: Log in For Price

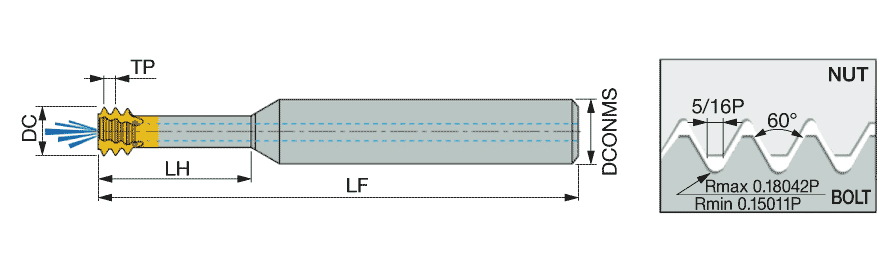

| Connection Diameter Machine Side (DCONMS) | 6 mm | Threads per Inch Maximum (TPIX) | 31.8 |
| Cutting Diameter (DC) | 3.9 mm | Cutting Edge Material | Carbide |
| Functional Length (LF) | 58 mm | Measurement Type | Metric |
| Flute Count (NOF) | 3 | Grade | AH725 |
| Coating | TiAlN | Tool Type | Solid carbide thread mills |
| Application | | Int. Thread Milling | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Unit | M |
| Threads per Inch Minimum (TPIN) | 31.8 |
Product Features
| Family Description | Small diameter short solid carbide MJ-type profile threading endmills with coolant holes directed to the cutting edges. Used for internal J-type thread length of up to 2.5xD in the aerospace industry and for other applications. | COO | ISRAEL |
Shipping Info
Weight per item
0.0000
