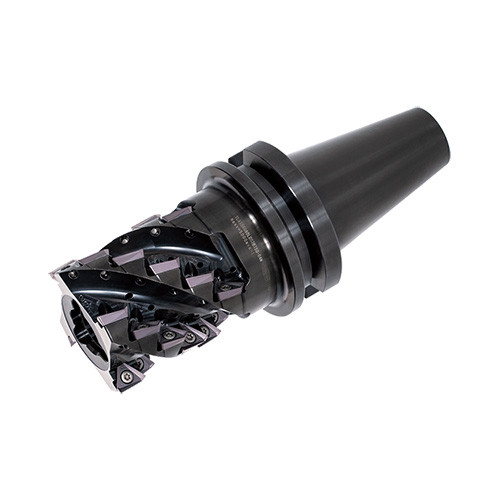

TLA15R080L083BT50-04M
Square shoulder mills for roughing with triangular inserts, Main unit with BT tapered shanks. Up to 2 TLA15-S sub-units can be added on a TLA15 main unit to increase depth of cut.
Price: Log in For Price
| Application | | Shoulder Milling | Tapered shape interface | | Master Insert Identification (MIID) | TOMT15... |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 24 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 83 mm | Body Material | Steel |
| Cutting Diameter (DC) | 80 mm | Tool Type | 90 Extended flute shell mill |
| Overall Length (OAL) | 150 mm | Unit | M |
Product Features
| Family Description | Square shoulder mills for roughing with triangular inserts, Main unit with BT tapered shanks. Up to 2 TLA15-S sub-units can be added on a TLA15 main unit to increase depth of cut. | FamilyName | TLA15-BT |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
6.5000
Name
Shell Mills
FamilyName
TLA15-BT
BrandName
Tungaloy
Related Documentation

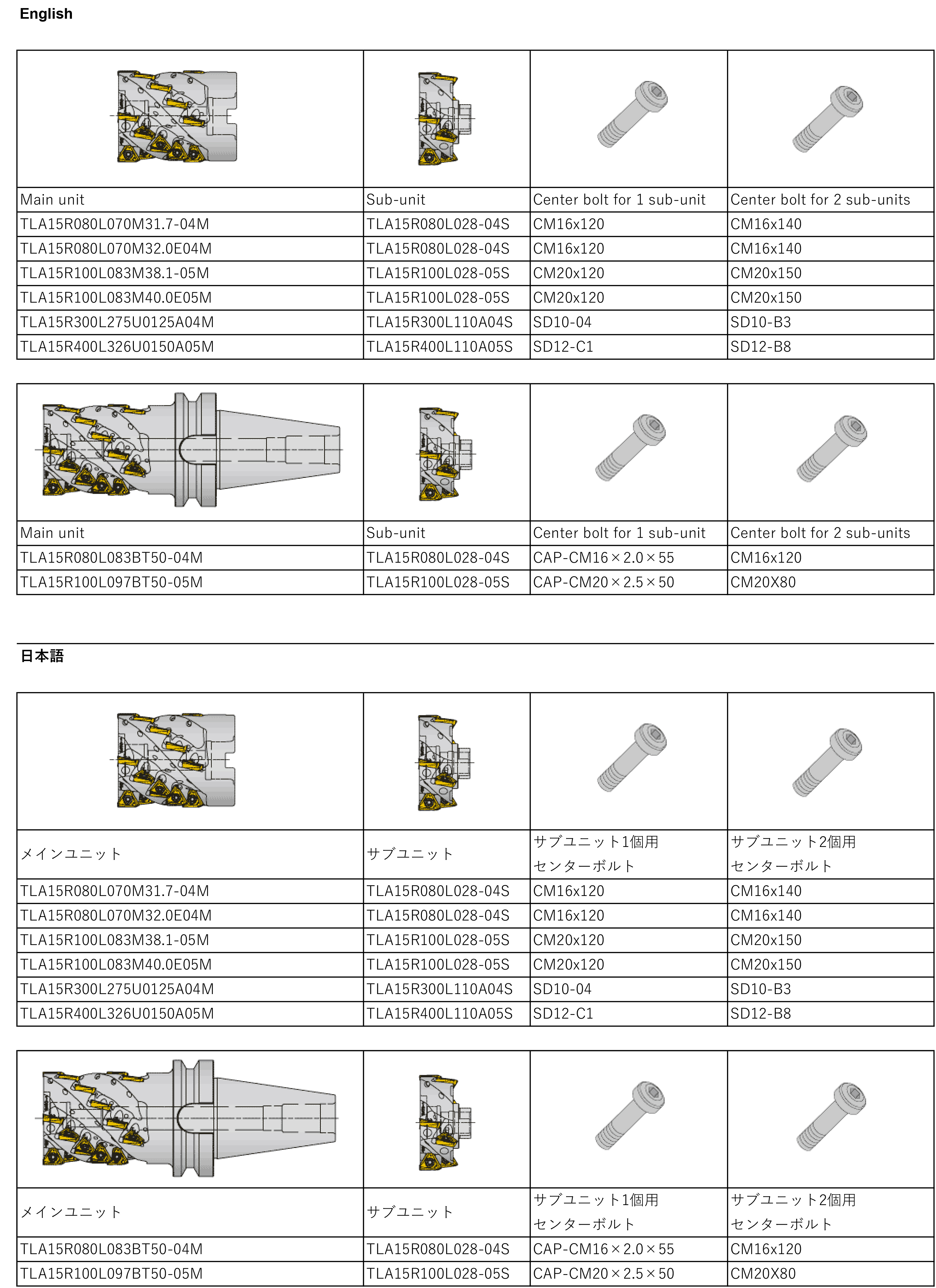

The combination of TLA15 main units, TLA15-S sub-units and center bolts
