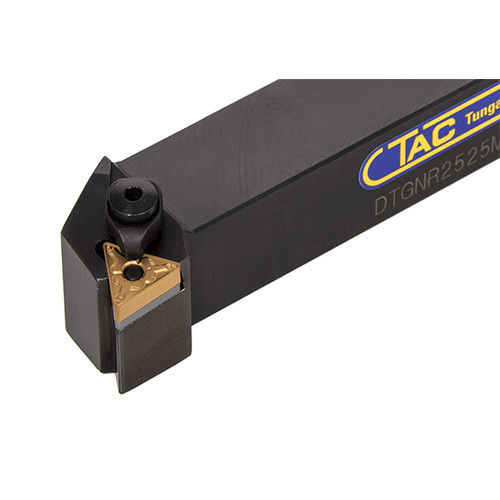

DTGNR2525M16
One-Double toolholder with 91deg approach angle, for negative triangle inserts
Price: Log in For Price

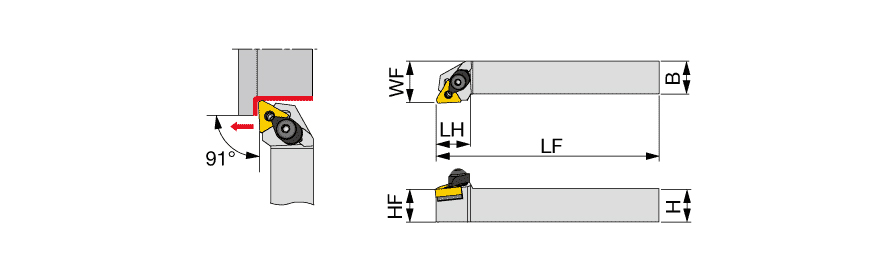

| Shank Height (H) | 25 mm | Master Insert Identification (MIID) | TNMG160408 |
| Shank Width (B) | 25 mm | Application | | For Triangular insert | |
| Overall Length (OAL) | 150 mm | Body Material | Steel |
| Functional Length (LF) | 150 mm | Tool Type | Square Shank Turning Tools |
| Head Length (LH) | 21 mm | Measurement Type | Metric |
| Functional Width (WF) | 32 mm | Unit | M |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | One-Double toolholder with 91deg approach angle, for negative triangle inserts | FamilyName | DTGNR/L |
| Remarks | Except for 57 type chipbreaker inserts | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.7600
Name
General Indexable Turning Tools
FamilyName
DTGNR/L
BrandName
Tungaloy
