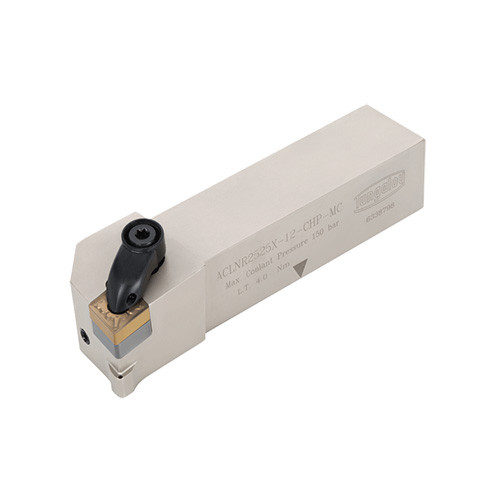

ACLNR16-4-CHP-MC
Double-clamp toolholder with 95 deg approach angle, for negative 80 deg rhombic inserts, with high pressure coolant channels
Price: Log in For Price

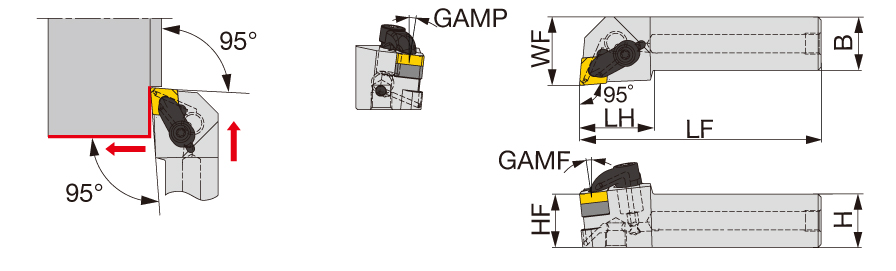

| Shank Height (H) | 1″ | Application | | For 80deg Rhombic insert | |
| Shank Width (B) | 1″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Overall Length (OAL) | 4.724″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Functional Length (LF) | 4.724″ | Body Material | Steel |
| Head Length (LH) | 1.378″ | Tool Type | Square Shank Turning Tools |
| Functional Width (WF) | 1-1/4″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
| Master Insert Identification (MIID) | CNMG432 |
Product Features
| Family Description | Double-clamp toolholder with 95 deg approach angle, for negative 80 deg rhombic inserts, with high pressure coolant channels | FamilyName | ACLNR/L-CHP-MC |
| COO | ISRAEL | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
General Indexable Turning Tools
FamilyName
ACLNR/L-CHP-MC
BrandName
Tungaloy
