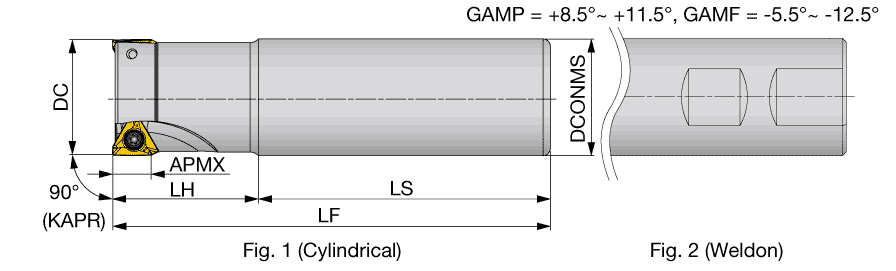

| Cutting Diameter (DC/DCX) | 20 mm | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 20 mm | Functional Length (LF) | 100 mm |
| Cutting Item Count (CICT) | 2 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 6 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 100 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 70 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Diameter Maximum (DCX) | 20 mm |
| Master Insert Identification (MIID) | TOMT060304PDER-MJ | Unit | M |

Product Features
| Family Description | High precision shoulder square endmills with triangular inserts | FamilyName | EPA06 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.2800
Name

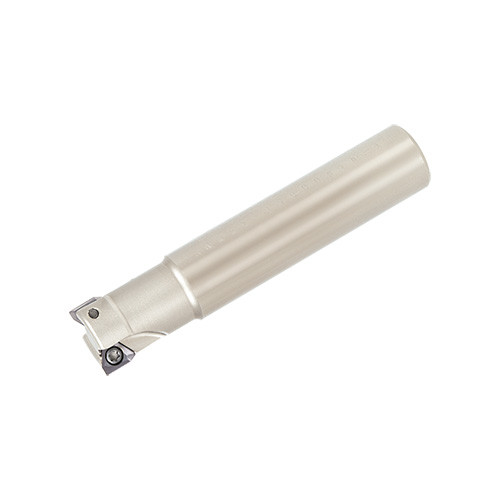

Indexable End Mills
FamilyName
EPA06
BrandName
Tungaloy
