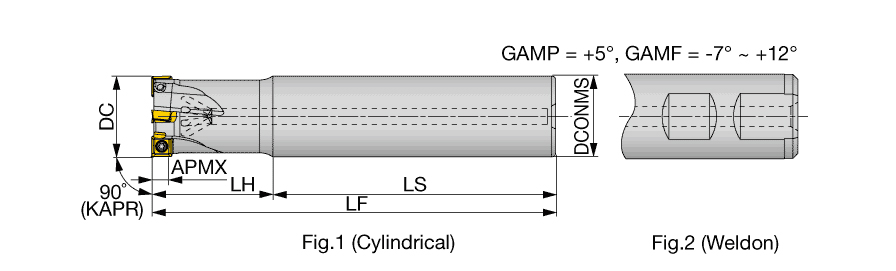

| Cutting Diameter (DC/DCX) | 40 mm | Head Length (LH) | 40 mm |
| Cutting Diameter (DC) | 40 mm | Functional Length (LF) | 140 mm |
| Cutting Item Count (CICT) | 8 | Tool Type | 90 indexable endmills |
| Depth of Cut Maximum (APMX) | 4 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 140 mm | Measurement Type | Metric |
| Shank Type | Weldon | Body Material | Steel |
| Application | | Shoulder Milling | | Shank Length (LS) | 100 mm |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Cutting Diameter Maximum (DCX) | 40 mm |
| Master Insert Identification (MIID) | SDMT050204PN-MJ | Unit | M |
Product Features
| Family Description | Highly dense shoulder square endmills with small SDMT05 inserts | FamilyName | EPD05 |
| COO | SOUTH KOREA | BrandName | Tungaloy |
Shipping Info
Weight per item
0.9040
Name

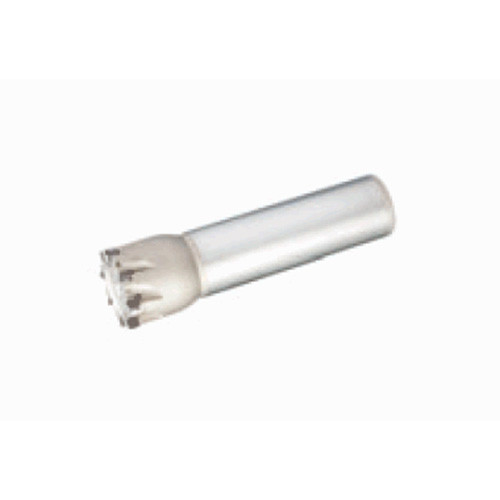

Indexable End Mills
FamilyName
EPD05
BrandName
Tungaloy
