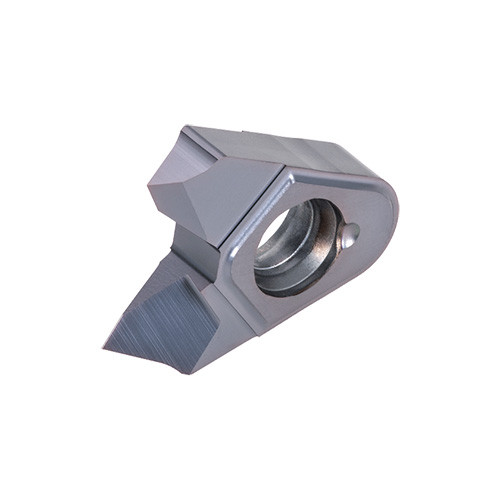

VGT10F-60A-005 SH725

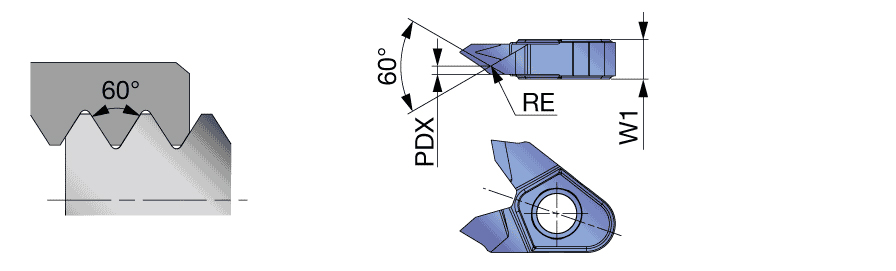

Threading insert with 2 cutting edges, external 60 deg thread angle, partial profile, sharp edge
Price: Log in For Price
| Corner Radius (RE) | 0.05 mm | Thread Pitch Minimum (TPN) | 0.4 mm |
| Insert Thickness (S) | 8.9 mm | Thread Pitch Maximum (TPX) | 1 mm |
| Grade | SH725 | Threads per Inch Maximum (TPIX) | 64 |
| Coating | TiAlN | Threads per Inch Minimum (TPIN) | 25 |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Body Material | Carbide |
| Application | | Inserts | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
Product Features
| Family Description | Threading insert with 2 cutting edges, external 60 deg thread angle, partial profile, sharp edge | FamilyName | VGT-60 |
| COO | JAPAN | BrandName | Tungaloy |
Shipping Info
Weight per item
0.0000
Name
On-Edge Threading Indexable Inserts
FamilyName
VGT-60
BrandName
Tungaloy
