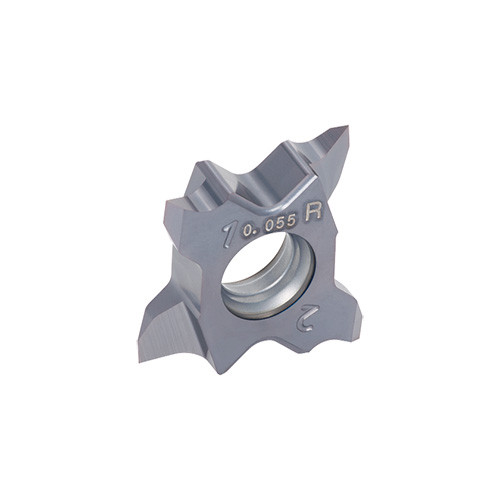

TCT18FR-60A-005 SH725

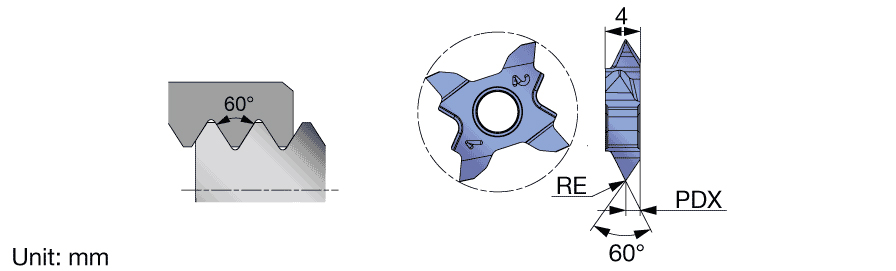

For external 60 deg general purpose threading, Partial profile insert
Price: Log in For Price
| Corner Radius (RE) | 0.05 mm | Thread Pitch Minimum (TPN) | 0.4 mm |
| Grade | SH725 | Thread Pitch Maximum (TPX) | 1 mm |
| Coating | TiAlN | Threads per Inch Maximum (TPIX) | 64 |
| Cutting Edge Material | Carbide | Threads per Inch Minimum (TPIN) | 25 |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Application | | Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | For external 60 deg general purpose threading, Partial profile insert | FamilyName | TCT18R/L-60 |
| Remarks | "F" included in designation means sharp edge. | BrandName | Tungaloy |
| COO | JAPAN |
Shipping Info
Weight per item
0.1510
Name
On-Edge Threading Indexable Inserts
FamilyName
TCT18R/L-60
BrandName
Tungaloy
