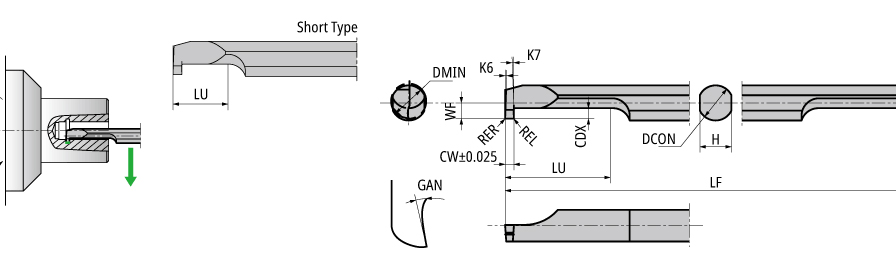

| Connection Diameter Machine Side (DCONMS) | 3 mm | Usable Length (LU) | 4.5 mm |
| Minimum Bore Diameter (DMIN) | 3 mm | Shank Height (H) | 2.7 mm |
| Functional Length (LF) | 50 mm | Body Material | Carbide |
| Coating | TiN | Cutting Edge Material | Carbide |
| Grade | ZM3 | Measurement Type | Metric |
| Application | | Inserts for miniature | | Cutting Width (CW) | 0.5 mm |
| Cutting Depth Maximum (CDX) | 1 mm | Unit | M |
| Functional Width (WF) | 1.3 mm |
Product Features
| COO | Japan | BrandName | NTK Cutting Tools |
| FamilyName | SBG-S Short type / Two-sided |
Shipping Info
Weight per item
0.0052
Name

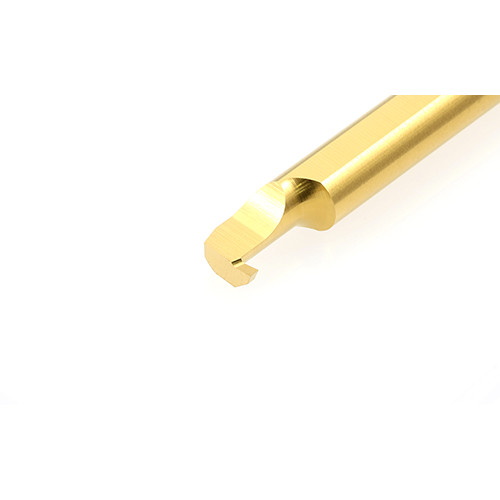

Solid Boring Bars
FamilyName
SBG-S Short type / Two-sided
BrandName
NTK Cutting Tools
