| Connection Diameter Machine Side (DCONMS) | 63 mm | Application | | Face contact interface | |
| Connection Diameter Workpiece Side (DCONWS) | 27 mm | Tool Type | HSK |
| Shank Size (SS) | HSK F 63 | Measurement Type | Metric |
| Body Length (LB) | 34 mm | Body Material | Steel |
| Body Diameter (BD) | 58 mm | Unit | M |
| Overall Length (OAL) | 60 mm |
Product Features

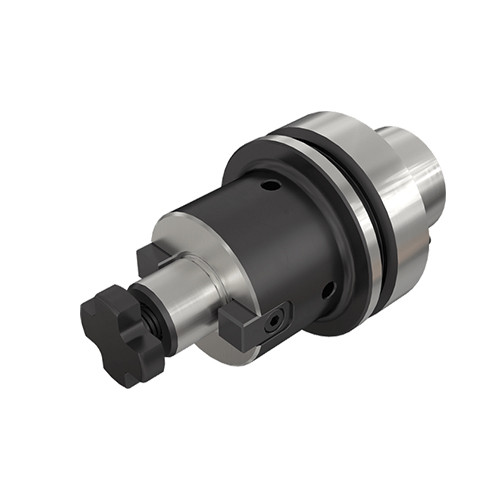

| Family Description | Shell mill holder with HSK-FM shank | FamilyName | HSK FM-SEM (for Shell mill) |
| Remarks | Used for MAKINOS machine models MAG3, MAG4 and V77. These tools are based on the HSK63F type With two drive pins which improve torque transmission The driving pins can be removed, turning the toolholder into a standard HSK63 type. | BrandName | Tungaloy |
| COO | GERMANY |
Shipping Info
Weight per item
1.4550
Name
Shell Mill Holders
FamilyName
HSK FM-SEM (for Shell mill)
BrandName
Tungaloy
