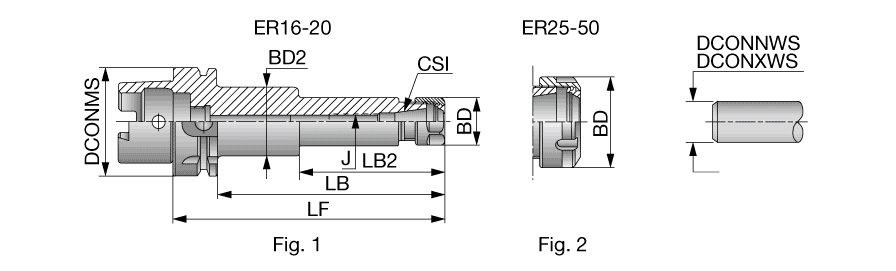

| Shank Size (SS) | HSK A 63 | Functional Length (LF) | 120 mm |
| Connection Size (CSI) | ER40 | Application | | Face contact interface | |
| Body Diameter (BD) | 63 mm | Tool Type | HSK |
| Body Diameter_3 (BD_3) | 50.4 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 3 mm |
| Body Length (LB) | 94 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 26 mm |
| Body Length_2 (LB_2) | 34 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Shank Length (LS) | 32 mm | Unit | M |
Product Features

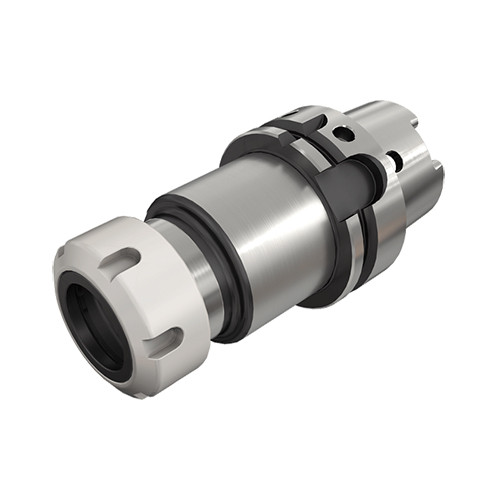

| Family Description | ER collet chucks with HSK-A shank | FamilyName | HSK A-ER (collet chuck) |
| COO | ITALY | BrandName | Tungaloy |
Shipping Info
Weight per item
1.7050
Name
Collet Chucks
FamilyName
HSK A-ER (collet chuck)
BrandName
Tungaloy
