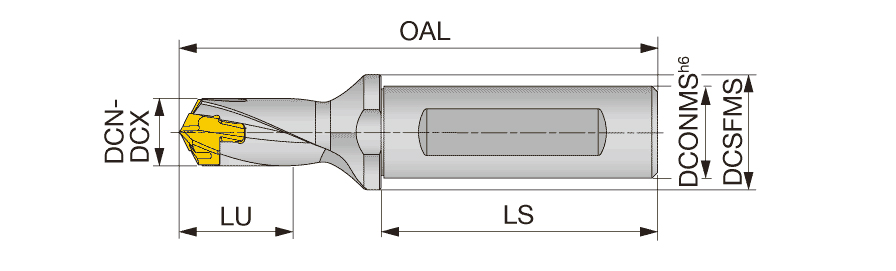

| Usable Length (LU) | 1.589″ | Shank Length (LS) | 2.362″ |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | indexable head drills | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Master Insert Identification (MIID) | DMP240 |
| Insert Seat Size Code (SSC) | 24 | Point Length (PL) | 0.143″ |
| Cutting Diameter Minimum (DCN) | 0.945″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.98″ | Flange Diameter (DF) | 1.654″ |
| Overall Length (OAL) | 5.272″ | Unit | I |
Product Features

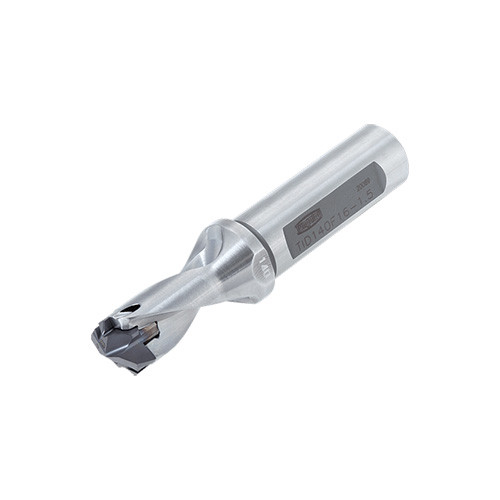

| Family Description | DrillMeister Indexable head drill with flanged shank | COO | SOUTH KOREA |
| Remarks | Note: An overall length depends on the type of drill head which is mounted on. |
Shipping Info
Weight per item
0.0000
